CNC machining

CNC machining (Computer Numerical Control) is a widely used manufacturing process that uses automated high-speed cutting tools to form designs from metal or plastic stock, with pre-programmed computer software controlling the movement of the machinery and tools. This technology enables accurate, automated and repeatable production of complex parts by removing material from the workpiece to create the desired shape.

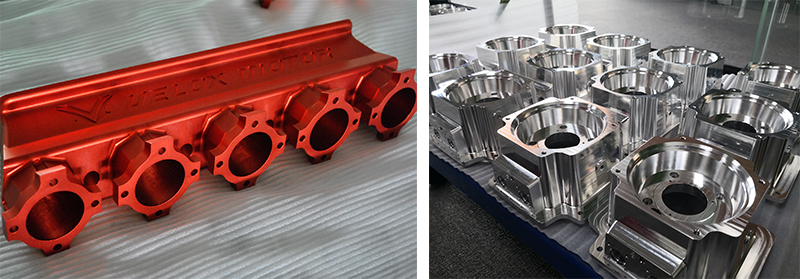

What is CNC milling?

CNC machining


CNC milling uses rotational cutting tools to remove material from a workpiece to produce finished parts and products. This manufacturing process works well for many materials, including metals, polymers, wood and glass. CNC milling systems generally have 3 linear degrees of freedom: the X, Y and Z axis. This allows for top-notch precision and detailing. Protolabs Network also offers more advanced, 5-degree systems, where the tool head and machining bed (A and B axis) can also rotate. 5-axis CNC machines can produce parts with high geometric complexity without needing multiple machine setups.


We’re not only the fastest CNC machining manufacturer of machined prototypes but also the most reliable source of on-demand production parts. Why is this important? You have a single-source CNC machining supplier from concept validation to short-run production.

We offer more competitive pricing at higher quantities in addition to tighter tolerances, hardware assembly, first article inspection (FAI) reporting, material certifications, and additional finishing options like anodizing and chromate plating. It’s CNC machining designed around your project needs—whether prototyping or production.

3-axis milling:
SizeMetric unitsImperial units
Max. part size for soft metals[1]& plastics2000x1500x200 mm 1500x800x500                            mm78.7x59.0x7.8in 59.0x31.4x27.5 in
Max. part for hard metals [2]1200x800x500 mm47.2 x31.4 x 19.6 in
Min. feature size0 0.50 mm0 0.019 in
[1]:Aluminum,copper & brass [2]:Stainless steel, tool steel,                            alloy steel & mild steel

How do CNC milling machines work?
To break it down in the simplest way possible, CNC milling involves a four-step process:
Step 1: Create a CAD model
Machinists use a design program such as Autodesk Fusion 360 to create a CAD model of a specific component.
Step 2: Convert CAD model for CNC machine
Next, import the CAD model into the CAM computer-aided manufacturing system. Done right, you’ll end up with a series of digital instructions that tell the CNC machine what to do—otherwise known as G-code. G-code commands let machines identify where to move and how fast to do it to make a specific component.
Step 3: Set-up up the CNC milling machine
Attach the workpiece or block of material on the machine bed—and make sure it's properly aligned through metrology tools or touch probes. Install the machine spindle and do all steps required for setting up the milling machine.
Step 4: Begin the milling process
Load the program to start the CNC milling process. The specialized cutting tools rotate at high speed or a fixed revolution per minute to subtract material from the workpiece—until it accurately replicates the desired component.
GET A FREE QUOTE

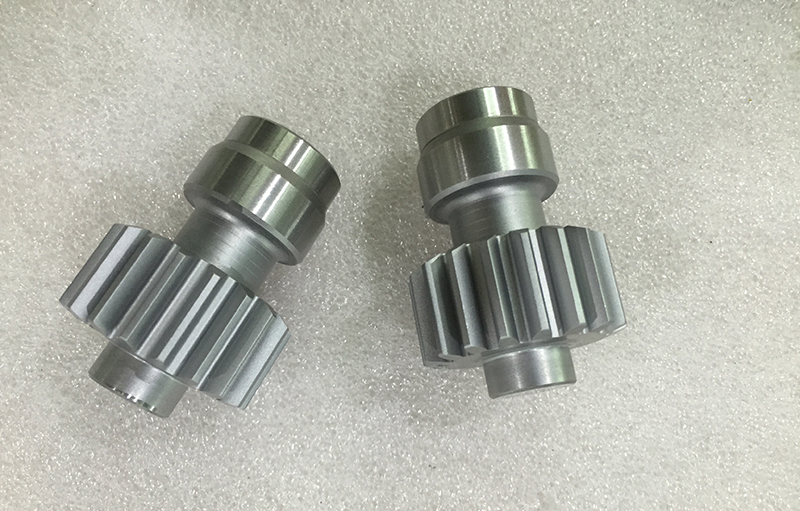

CNC turning

CNC Turning is a manufacturing process in which bars of material are held in a chuck and rotated while a tool is fed to the piece to remove material to create the desired shape. ... CNC lathes or turning centers have tooling mounted on a turret which is computer-controlled

Equipped with live tooling, Shbury as one CNC turning factory can provide services capable of receiving a solid chunk of raw material and - without any operator handling - can turn, mill, drill, bore, engrave, tap, and thread a ready-to-ship, finished product.

CNC machining


Advantages of CNC Turning

CNC lathes remove a lot of material quickly. And when using fine cutting tools such as our Guhring cutters, the surface finish is excellent and doesn’t need any post-finishing. Turning is really the only practical way to make internal and external threads, long bores, tapers, ring grooves, and many other features that are essentially round in cross-section. Some of these same features can also be made on a CNC mill, but this would be slower and is not optimized for maximum efficiency.

Maximum part size for CNC turning
Part size limitationsMetric units
Maximum part diameter500 mm
Maximum part length2000 mm
Maximum swing over the carriage350 mm
Maximum spindle through-hole60 mm
CNC turning tolerances We follow ISO 2768 standards for CNC machining.
Limits for nominal sizePlastics(ls0 2768-m)Metals (ls0 2768-f)
0.5mm* to 3mm±0.1mm±0.05mm
Over 3mm to 6mm±0.1mm±0.05mm
Over 6mm to 30mm±0.2mm±0.1mm
Over 30mm to 120mm±0.3mm±0.15mm
Over 120mm to 400mm±0.5mm±0.2mm
Over 400mm to 1000mm±0.8mm±0.3mm
Over 1000mm to 2000mm±1.2mm±0.5mm
Over 2000mm to 4000mm±2mm
*Please clearlyindicate tolerances for nominal sizes below 0.5mm on your technical drawing.

Material Available
Stainless SteelSS201, S5301, S5303, SS304, SS316, $S416 17-4PH etc.
Steelmild steel, Carbon steel. 4140, 4340, 0235.0345B. 20#.45# etc.
BrassHPb63,HPb62,HPb61,HPb59, H59, H68, H80, H90 etc.
CopperC11000, C12000, C12000 C36000 etc.
AluminumAL6061, A16063, AL6082, AL7075, AL5052, A380 etc.
lronA36, 45#, 1213, 12L14, 1215 etc.
PlasticABS, PC, PE, POM, Delrin, Nylon, Teflon, PP, PEl, Peek etc.
Surface Finish
Aluminum partsStainless Steel partsSteelPlastic
Clear AnodizedPolishingZinc platingPlating
Color AnodizedPassivatingOxide blackPainting
Sandblast AnodizedSandblastingNickel platingpolishing
Chemical FilmLaser engravingChrome platingLaser engraving
Brushing
Carburized
Polishing
Hot treatment
Chroming
Powder Coated

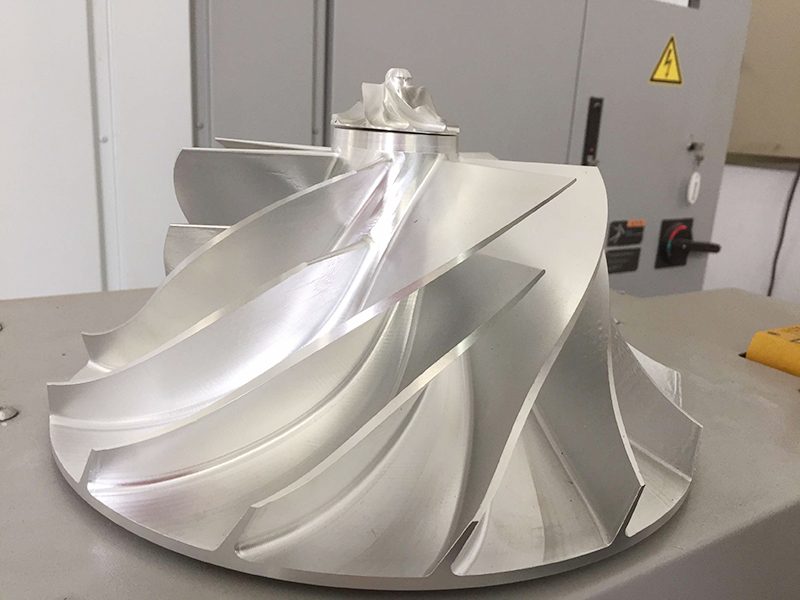

5 Axis CNC machining

This type of machining relies on a tool moving in five different directions around which the tool rotates. It is a multi-axis subtractive manufacturing process in which the machine shapes the workpiece material and moves in 5 directions or vertically.


The directions of movement include; X, Y, and Z , as well as A and B. 5-axis machining allows operators to approach part machining from all directions and axis in a single operation. Therefore, eliminating the need for manual workpiece repositioning between operations. Also, it saves time and is ideal for creating highly complex parts requiring precision.

CNC machining

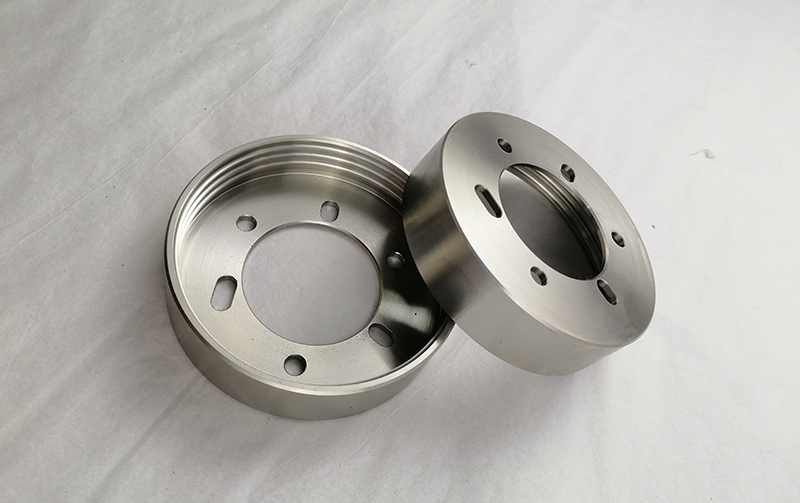

CNC precision machining

Precision machining is the process of using precision CNC machinery to manufacture prototypes or parts. This precision manufacturing process should meet strict design specifications, critical tolerances, and manufacturing standards.

High-precision machining is usually an ideal choice for parts with complex features and tight machining tolerances. So, when looking for precision machining services, you’d better work with a reliable CNC machining company.

CNC machining
